THERMAL HEAT SCREEN

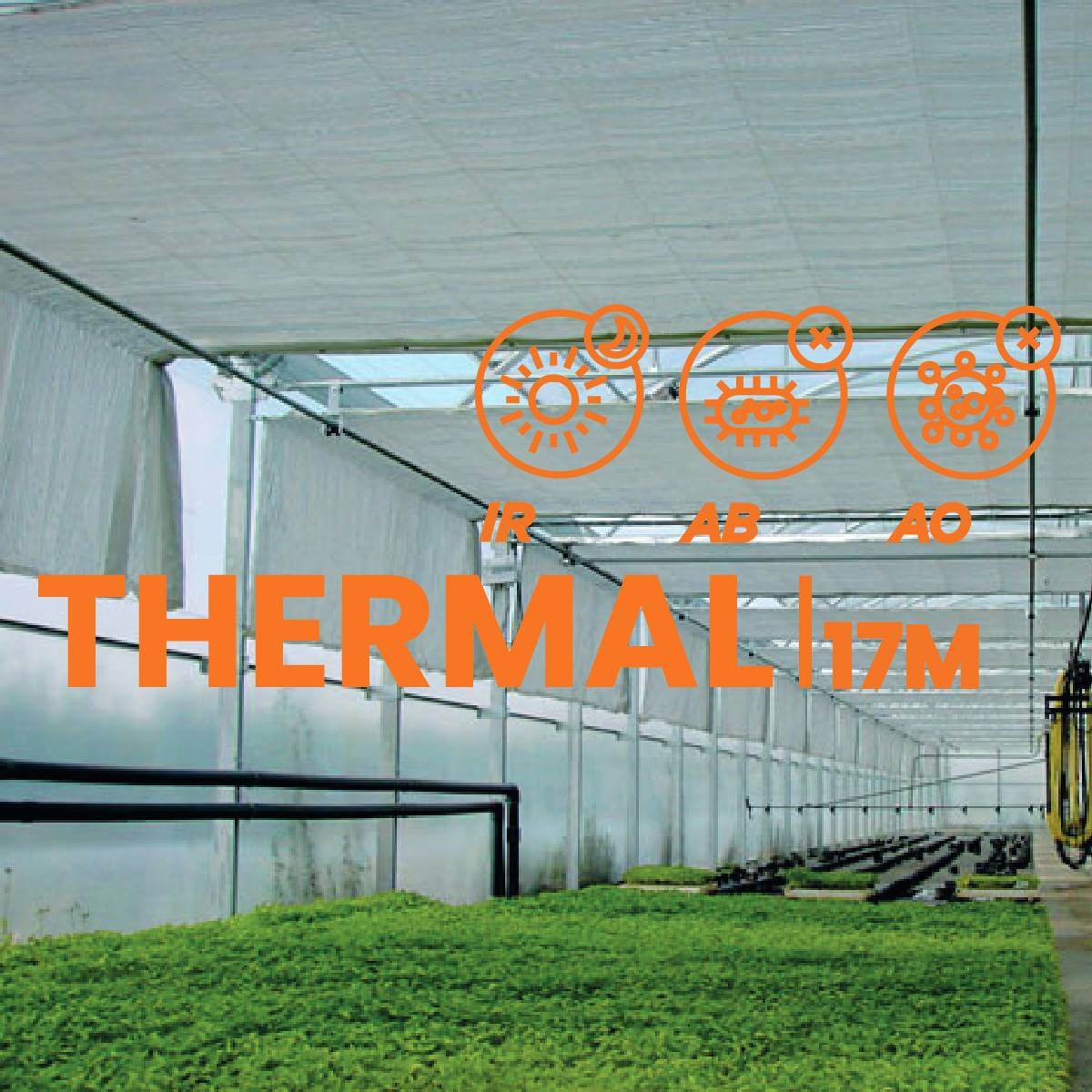

It is a 17 micron thermal screen with seasonal AB+AO+IR additive that can be produced according to the purpose of use, the region to be used, the product and the size-dimension demands. It provides extra energy saving with its thermal effect and heat barrier feature. It provides temperature control in the greenhouse. It is the most economical solution used for this purpose. It reduces the use of pesticides, and when used correctly, it is the most environmentally friendly product.
You can chat with us live in business hours of Turkey in English, Russian, Spannish. If support agent is not available please leave your message and we will be get back to you day after you sent it.
It is a 17 micron thermal screen with seasonal AB+AO+IR additive that can be produced according to the purpose of use, the region to be used, the product and the size-dimension demands. It provides extra energy saving with its thermal effect and heat barrier feature. It provides temperature control in the greenhouse. It is the most economical solution used for this purpose. It reduces the use of pesticides, and when used correctly, it is the most environmentally friendly product.
Product features
PRODUCT TYPE |
THERMAL HEAT SCREEN
|
Film Thickness | 17 micron |
Technology | 3-layer coextrusion |
Movie Length | According to customer demand |
Film Width | According to customer demand (maximum 10 meters) |
Film Color | Natural |
Standard Features | Low Density Polyethylene, Thermal(IR), AB, AO |
Mechanical and Optical Properties
RESISTANCE | SEASON | Norm | ||||||
THICKNESS | 17 mi. | EN ISO 4591 | ||||||
CONTRIBUTIONS | Low Density Polyethylene+IR+AB+AO | EN ISO 13206 | ||||||
Tensile Strength at Break | MD | ≥ 30 MPa | EN ISO 527-3 | |||||
TD | ≥ 28 Mpa | |||||||
Elongation at Break | MD | ≥400% | EN ISO 527-3 | |||||
TD | ≥600% | |||||||
Tensile Strength in Yield | MD | ≥11 Mpa | EN ISO 527-3 | |||||
TD | ≥11 Mpa | |||||||
Dart Drop Test | body | ≥100 g | EN ISO 7765-1 | |||||
OPTICAL PROPERTIES | ||||||||
Total Transmission of Visible Light | ≥91% | EN ISO 2155-5 | ||||||
Diffuse Light/Haze | ≥25% | EN ISO 2155-5 | ||||||
Thermal Effect | ≥40% | EN ISO 13206 | ||||||
The values given in this technical data sheet are the result of our analysis and are provided for reference purposes only. They are obtained under optimum production conditions and can be changed due to product dimensions, differences in extrusion equipment, etc. Istanbul Sera Plastik reserves the right to change this data without prior notice and without any need. This technical data sheet cannot be used against the warranty and does not hold us responsible as successful use depends on the application conditions.
