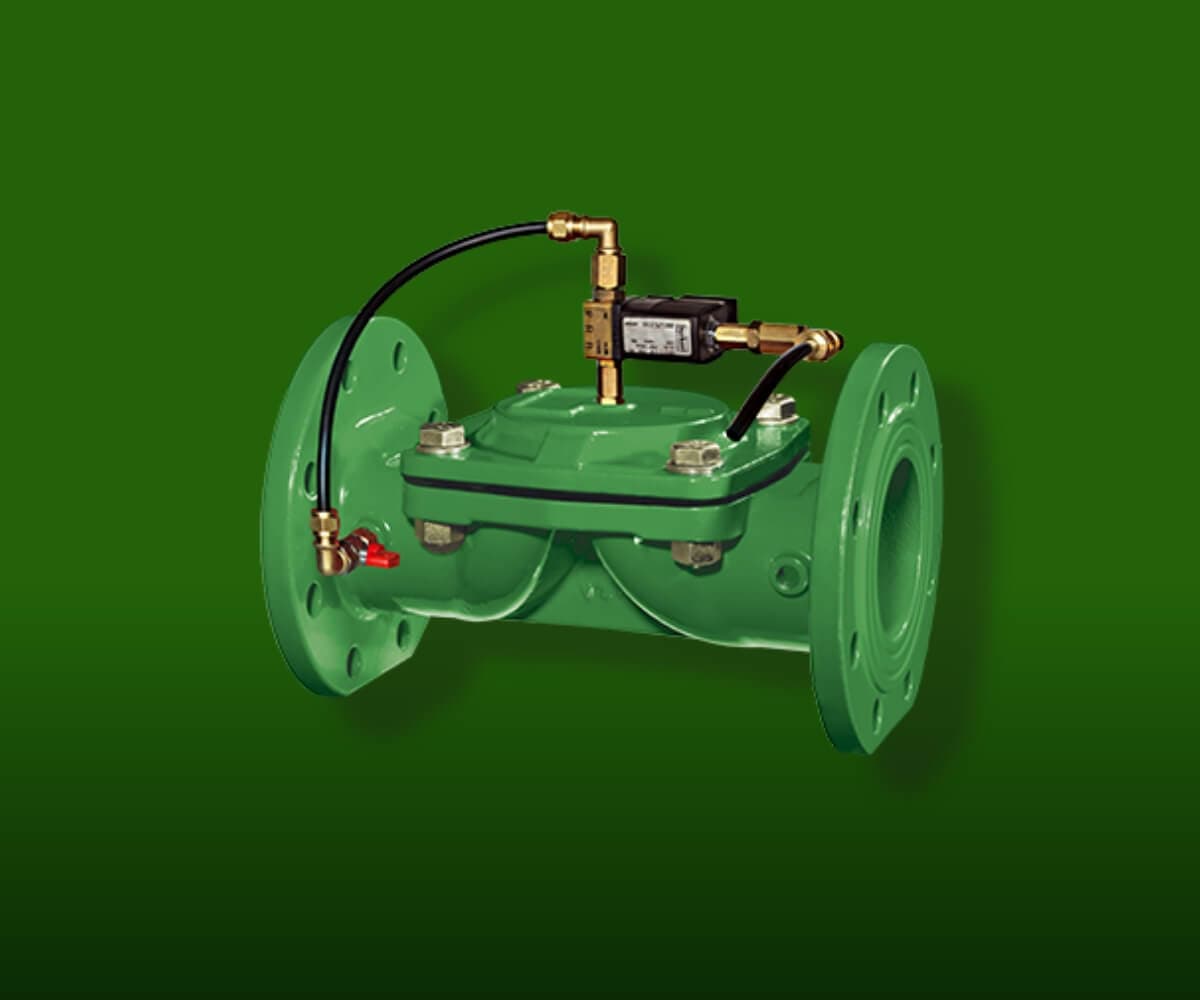

Solenoid Controlled Valve
Solenoid Control Valves are hydraulic control valves that perform the on-off operation by remotely controlling the valve with an electrical signal using the solenoid coil mounted on it.
You can chat with us live in business hours of Turkey in English, Russian, Spannish. If support agent is not available please leave your message and we will be get back to you day after you sent it.
Solenoid Control Valves are hydraulic control valves that perform the on-off operation by remotely controlling the valve with an electrical signal using the solenoid coil mounted on it. The solenoid coil provides the electrical signal to the valves with a control device, time relay, switch, PLC control unit, etc. control equipment. Optionally, 24 Volt AC 50 Hz or 60 Hz, 12 Volt DC, 9 Volt DC latch and 12 Volt DC latch normally open (NO) or normally closed (NC) solenoid coils can be used on the main valve.
- Easy operation and maintenance with its simple structure
- Lower costs
- Working in a wide pressure range
- Perfect modulation even at low flow rates
- Shockless opening – closing with flexible diaphragm
- Complete sealing with reinforced diaphragm and inner spring
- Epoxy – Long life with polyester coating
- Wide control application area with the use of different pilot valves
- Ability to work in horizontal and vertical positions in application areas
Technicial Specifications
| Operating pressure | Standard | 0.7 – 16 bar (10 – 240 psi) |
|---|---|---|
| Low Pressure Range | 0.5 – 10 bar (7.5 – 160 psi) | |
| High Pressure Range | 0.7 – 25 bar (10 – 360 psi) | |
| Heat | min. Operating temperature | -10 °C (14 °F) DIN 2401/2 |
| Max. Operating temperature | 80 °C (176 °F) DIN 2401/2 | |
| Connection | flanged | DIN 2501, ISO 7005 – 2 |
| Gear | ISO (BSP), ANSI (NPT) | |
| Covering | standard | Epoxy |
| Optional | Polyester | |
| Hydraulic Connections | standard | Reinforced Nylon (Air Brake) Hydraulic Pipe SAE J 844 |
| Optional | Copper DIN 1057 | |
| Actuator Type | With Single Control Chamber | With Diaphragm Actuator, With Diaphragm Closure | |
