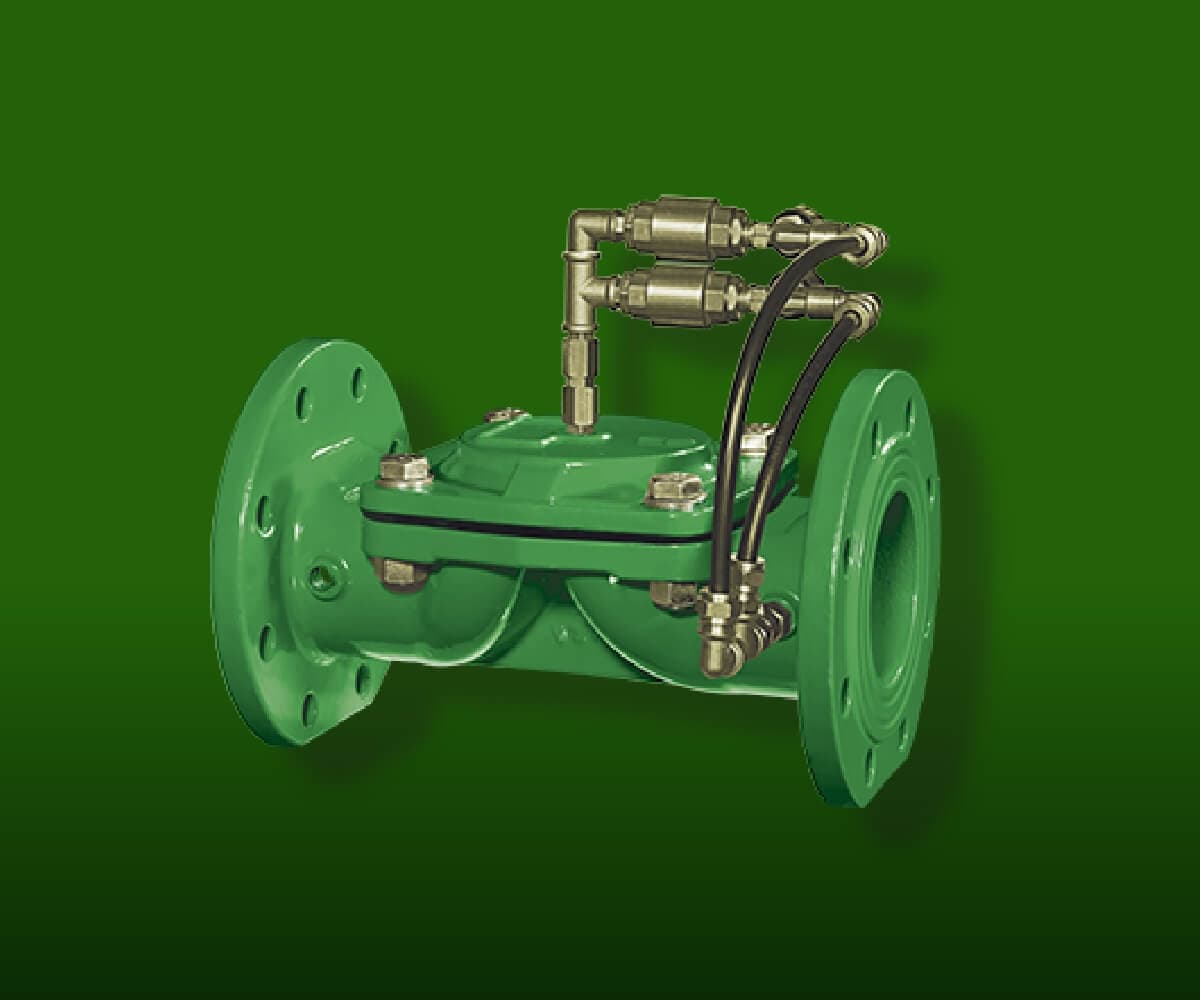

Hydraulic Check Valve
Hydraulic Check Valve is an automatic hydraulically controlled valve that prevents backflow in the system instead of a check valve at the pump outlets.
You can chat with us live in business hours of Turkey in English, Russian, Spannish. If support agent is not available please leave your message and we will be get back to you day after you sent it.
Hydraulic Check Valve is an automatic hydraulically controlled valve that prevents backflow in the system instead of a check valve at the pump outlets. When the outlet pressure value exceeds the inlet pressure value, the valve closes itself without creating a pulse. When the inlet pressure value exceeds the outlet pressure value, the valve opens slowly. Thus, it prevents the pressure fluctuation that occurs at the start of the pump.
- Easy operation and maintenance with its simple structure
- Lower costs
- Working in a wide pressure range
- Perfect modulation even at low flow rates
- Shockless opening – closing with flexible diaphragm
- Complete sealing with reinforced diaphragm and inner spring
- Epoxy – Long life with polyester coating
- Wide control application area with the use of different pilot valves
- Ability to work in horizontal and vertical positions in application areas
Technicial Specifications
| Operating pressure | Standard | 0.7 – 16 bar (10 – 240 psi) |
|---|---|---|
| Low Pressure Range | 0.5 – 10 bar (7.5 – 160 psi) | |
| High Pressure Range | 0.7 – 25 bar (10 – 360 psi) | |
| Heat | min. Operating temperature | -10 °C (14 °F) DIN 2401/2 |
| Max. Operating temperature | 80 °C (176 °F) DIN 2401/2 | |
| Connection | flanged | DIN 2501, ISO 7005 – 2 |
| Gear | ISO (BSP), ANSI (NPT) | |
| Covering | standard | Epoxy |
| Optional | Polyester | |
| Hydraulic Connections | standard | Reinforced Nylon (Air Brake) Hydraulic Pipe SAE J 844 |
| Optional | Copper DIN 1057 | |
| Actuator Type | With Single Control Chamber | With Diaphragm Actuator, With Diaphragm Closure | |
